ASTM A240 316 Stainless Steel Plate 6-16mm Thickness

Name: ASTM A240 316 Stainless Steel Plate 616mm Thickness
Brand: TISCO BAOSTEEL
Price: 5000 USD

Quality ASTM A240 316 Stainless Steel Plate 6-16mm Thickness for sale

Brand Name : TISCO BAOSTEEL

Model Number : 304 304L 316L 310S 321 2205 2507 904L 254SMO.etc

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 5000 - 7200 USD/Ton

Payment Terms : T/T, Western Union

Supply Ability : 20Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : Stainless Steel Plate

Grade : 304 304L 316L 310S 321 2205 2507 904L 254SMO.etc

Thickness : 0.6 - 30.0mm

Width : 1219mm 1500mm 1800mm 2000mm

Surface : NO.1 2B

Brand : BAOSTEEL TISCO

Standard : ASTM A240/240M

Loading Port : Shanghai Port

Contact Now

SA240 316 Stainless Steel Plate Sheet 6.0mm 8.0mm 10.0mm 12.0mm 14.0mm 16.0mm Thickness

Products Specification

Products Name	316 Stainless Steel Plate
Main Grades	Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316TI, 317L, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L,630,631,254SMO,654SMO,253MA,2205,2507.etc
Thickness	0.6 - 30.0mm
Width	1250mm,1500mm ,1800mm,2000mm, or custom other size as request
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT
Service	Laser Cutting
Form	Plate / sheet
Cutting Shape	Round , Square, or any special shape as request
Test Certificate	Yes.
Finish	NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.
Brand	TISCO, LISCO,BAOSTEEL , POSCO, JISCO

316 stainless - steel plate is an austenitic stainless - steel alloy renowned for its excellent corrosion resistance, especially in chloride - containing environments

Here is a detailed introduction:

Parameters

Parameter	Value
Carbon (C) content	≤0.08% (for 316); ≤0.03% (for 316L)
Silicon (Si) content	≤1.00%
Manganese (Mn) content	≤2.00%
Phosphorus (P) content	≤0.045%
Sulfur (S) content	≤0.030%
Chromium (Cr) content	16.00 - 18.00%
Nickel (Ni) content	10.00 - 14.00% (for 316); 12.00 - 15.00% (for 316L)
Molybdenum (Mo) content	2.0 - 3.0%
Yield strength (YS)	≥205 Mpa (for 316); ≥175 Mpa (for 316L)
Tensile strength (TS)	≥520 Mpa (for 316); ≥480 Mpa (for 316L)
Elongation (EI)	≥40%
Hardness (Hv)	≤200

Specification316 stainless - steel plates are available in a variety of sizes. The thickness typically ranges from 0.3 mm to 100 mm, the width can be up to 2000 mm, and the length can reach up to 6000 mm.

StandardIt complies with international standards such as ASTM A240 and JIS G4304, ensuring quality and consistency in production.

Similar Grades

Country/Region	Grade
USA	UNS S31600 (316), UNS S31603 (316L)
Japan	SUS316, SUS316L
European Union	4401 (316), 4404 (316L)
China	06Cr17Ni12Mo2 (316), 022Cr17Ni12Mo2 (316L)

Packaging

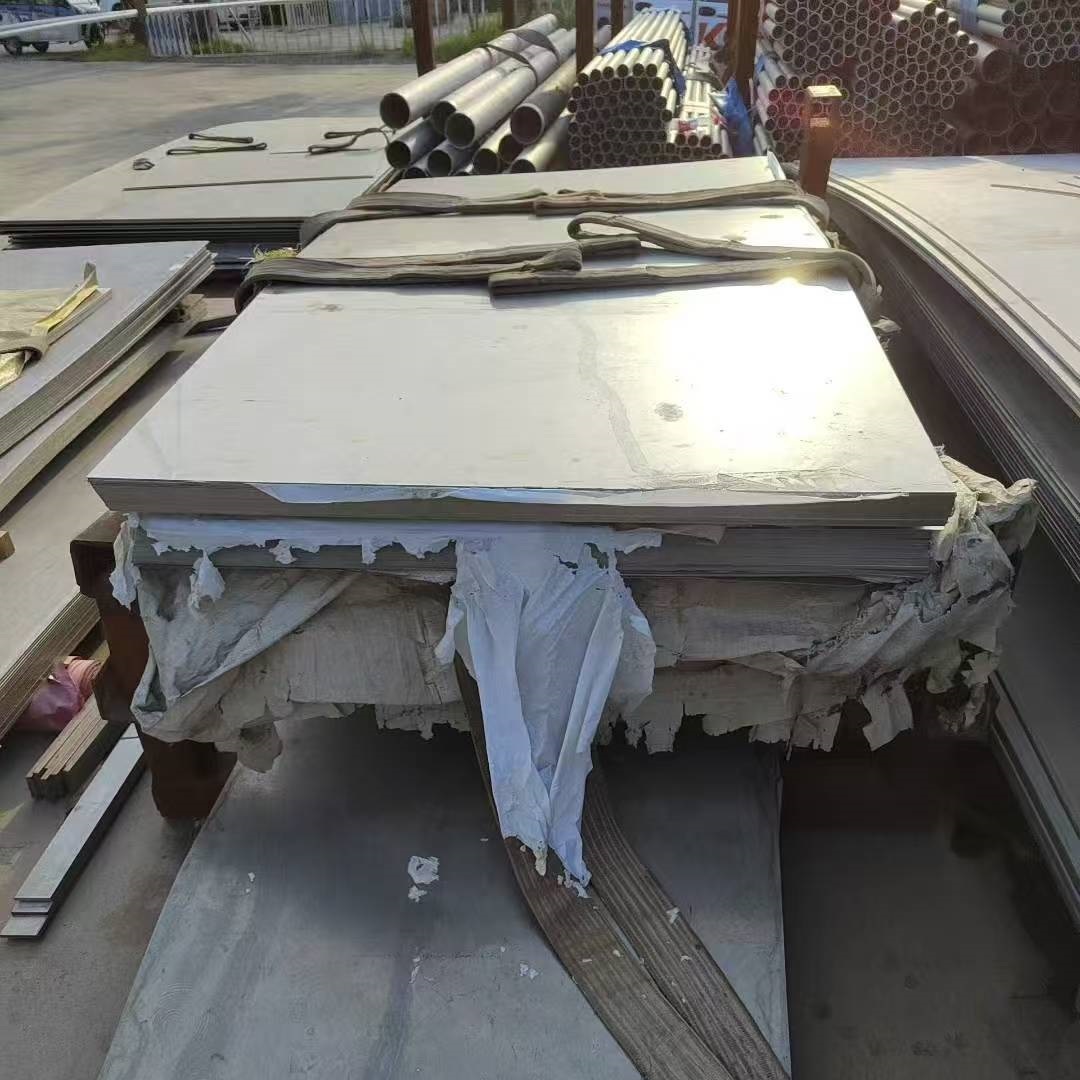

316 stainless - steel plates are usually packaged in bundles or wrapped with protective materials to prevent scratches and corrosion during transportation and storage. Some may also be packed in wooden cases for better protection, especially for high - value or large - sized plates.

Application

Marine industry: Due to its good resistance to seawater corrosion, it is used for shipbuilding, marine platforms, and other marine equipment.
Chemical and petrochemical processing: Applied in pressure vessels, storage tanks, heat exchangers, and pipeline systems to withstand corrosive media.
Food and beverage processing: Because of its corrosion resistance and hygienic properties, it is suitable for food processing equipment.
Medical equipment: Used to manufacture surgical instruments and implants due to its antibacterial properties and corrosion resistance.
Pharmaceutical industry: Applied in drug processing equipment to ensure that drugs are not contaminated.
Paper and textile industry: Used in processing equipment to resist corrosive media.
